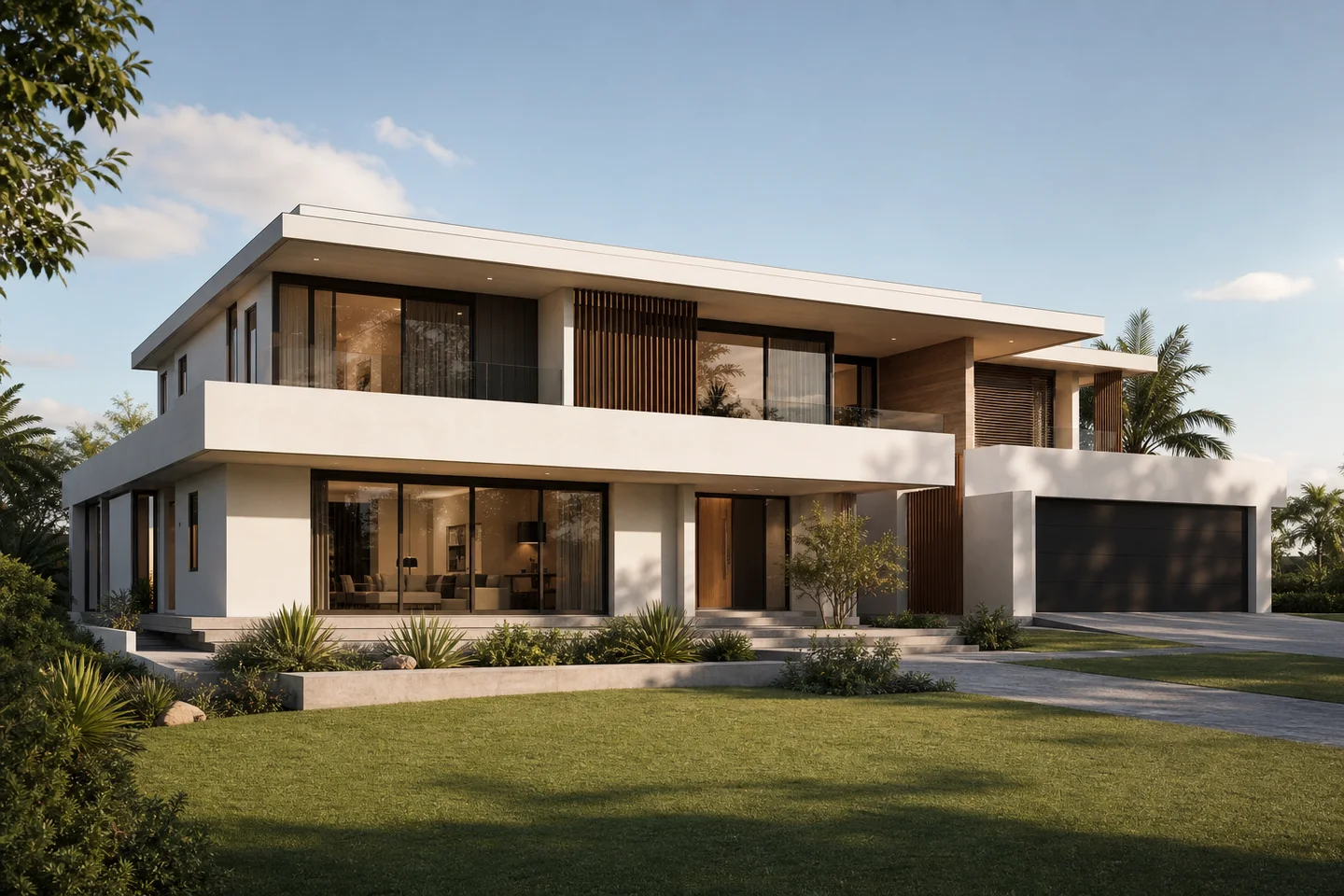

Acacia is designed for families who want separation between social and private spaces without wasting circulation. The ground floor combines entertaining, service and guest functions; the upper floor gives the family a private lounge and three bedrooms.
Footprint16.4 × 14.6m
Recommended plot22 × 28m
Garage2 spaces
StyleContemporary
Rooms included
Double-height entrance
Living room
Dining room
Island kitchen
Pantry and laundry
Guest ensuite
Family lounge
Primary suite
Two bedrooms
Three balconies
Drawing set
Ground and first floor plans
Roof plan
Four elevations
Two sections
Stair details
Door and window schedule
Area schedule
What you receive
A clear set, in the format you need.
Every package is checked before payment. This prevents buying an incompatible format and gives you a place to explain changes.
PDF
PDF plan set
Complete print-ready architectural set.
$99
DWG + PDF
CAD + PDF plan set
Editable drawings and print-ready sheets.
$149
DWG + PDF
Plan + customization review
Plan package plus an initial adaptation consultation.
$249
Plan request
Choose the files. Tell us about the build.
We confirm the selected package, intended use and any customization before sending payment instructions.
Plan questions
Before you build.
Can room sizes be changed?+
Yes. Choose the customization package and explain the plot and room changes required.
Are structural drawings included?+
No. Structural design must be prepared for the final site and local conditions.
